Affordable CNC Router Table for Sale with 4×8 Vacuum Table



Affordable CNC Router Table

CNC wood router 4×8 is the most popular model in all our cnc routing machines, it generally refers to a router with a 4 by 8 feet (4’x8′ or 48″x96″) working size. This CNC Router ATC-G8 is built with one single head and vacuum-sorb working table as well. The electric spindle adopts a liquid-cooled one, which is much better for a long time of continuous carving or milling. The working table is a two-in-one design and can fix material by vac-sorb as well as by clamp according to your production requirements. The unique industrial plug design makes the electrical components of the wood router more stable and durable. This 4×8 cnc machine is ideal for universal application and beginners. So, we can say it is one of the best entry-level wood routers.

cnc wood router 4x8

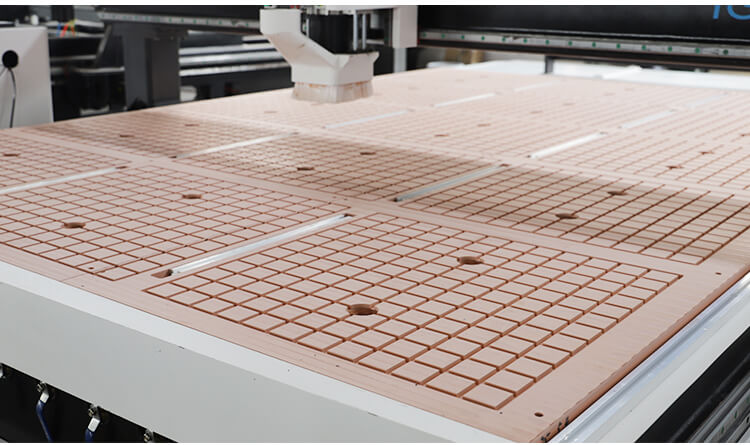

The CNC vacuum table is a workbench composed of bakelite boards with 6, 8, or 24 sections, which uses a vacuum pump to ensure the suction strength and the stability of the workpiece on the table to ensure that the workpiece will not vibrate and shake during the work of the CNC router machine.

4×8 Vacuum Table

The vacuum table is connected to the bottom of the CNC router machine by a vacuum pump through a pipeline. There are many suction holes on the vacuum table. When we put the workpiece on it, the workpiece will be firmly adsorbed by the negative pressure generated by the vacuum pump. The machine starts to work at this time on the table, and the entire loading and unloading process does not exceed ten seconds with high efficiency and speed. It is very suitable for making wood doors and cabinet furniture. The suction holes on the CNC vacuum table will automatically close when there is a large amount of air intake, thereby avoiding increasing the load of the vacuum system in order to ensure the vacuum suction effect, and avoiding strong airflow between the vacuum table and the workpiece.

Application of CNC Router Machine 4×8:

Applicable materials for 4×8 Router with Vacuum Hold Down

CNC wood router 4×8 is good for all types of wood, PVC, HDPE, Plastic, MDF, PT Plywood, Acrylic, and other non-metallic materials. (sheet materials no more than 4×8 in size)

The applicable industry of 4′ x 8′ CNC Wood Router System

General work, woodworking, sign-making, crafts work, decoration panel, musical instrument, etc.

Applications Hobby CNC routers

Features of CNC Router 4×8 Machine

1. Integral cast iron frame, which is more durability.
2. Hiwin linear guide with high precision, which can ensure the CNC router machine frame more stability and durability.
3. High accuracy rolling ball screw from Taiwan TBI, assure machine frame of better precision.
4. DSP Handle controlling, no occupying computer resource, one computer can control several equipment.
5. It is compatible with various CAD/CAM softwares such as TYPE3, Artcam, Casmate, Artcut, etc.
6. Vacuum table can absorb the materials automatically by vacuum pump, not need to fix the materials.
